About
Specifications & Features

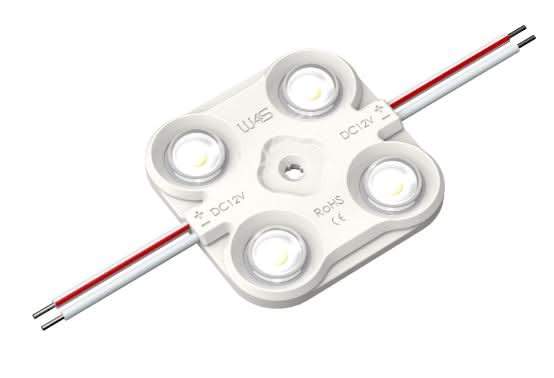

This 12V LED module is a compact and powerful solution for backlighting, signage, or silhouette lighting. Emitting bright 10000K white light, it offers a wide 160° beam angle for uniform illumination. Built with quality in mind, it’s CE and RoHS certified and backed by a 5-year warranty—perfect for demanding installations that require long-lasting performance and waterproof protection.
Specifications
- Voltage: 12V DC
- Power: 1.44W (White), 0.96W (Colours)
- Lumen Output: Not specified
- Colour Temperature: 10000K (White) – Understanding Colour Temperature
- Material: Sealed Resin / Plastic Housing
- IP Rating: IP67

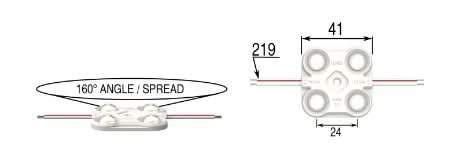

- Dimensions: 41mm x 41mm x 6mm
- CRI: Not specified
Use Case Ideas: How, Where & Why!
Outdoor Signage Backlighting
Illuminate outdoor signs with waterproof protection for crisp visibility in any weather.
Shop Window Silhouetting
Create eye-catching store window silhouettes to highlight products and entice passersby after dark.
Architectural Cove Lighting
Install in recessed coves to cast uniform 10000K white uplight for modern architectural accents.
Lightbox Panel Illumination
Power lightboxes evenly by spacing modules every metre for bright, uniform display lighting.
Poolside Deck Accents
Line pool edges with waterproof LED modules to ensure safe, ambient illumination around water features.
Installation Guidance, Tips & Tricks
Plan Module Spacing
Space modules 200 mm apart (5 modules/m) to achieve uniform backlighting without dark spots.
Limit Series Count
Connect no more than 25 modules in series on 12V DC to avoid voltage drop and dimming.
Use Proper Power Supply
Select a 12V DC supply rated at least 1.44W × module count +20% to ensure stable brightness.
Seal Outdoor Connections
Apply waterproof connectors and silicone sealant on joins to maintain IP67 protection outdoors.
Test Before Finalising
Power modules for 5 minutes, then inspect for consistent 10000K output and even beam.
Frequently Asked Questions...
Can this 12V LED module be used outdoors?
Yes, the module is IP67-rated for waterproof, outdoor-safe use, making it perfect for signage, lightboxes, and architectural backlighting in all weather conditions.
How many modules can I connect in series and what spacing is recommended?
You can use up to 25 modules in a series for larger signage applications. For even lighting distribution, we recommend spacing 5 modules per metre.
What beam angle and colour temperature does this module provide?
The module emits a bright 10000K white light with a wide 160° beam angle for uniform illumination.
What is the power consumption of each module?
Each white LED module consumes 1.44W at 12V DC, while coloured versions consume 0.96W.
What lifespan and warranty does the LED module have?
The module has a rated lifespan of 50,000 hours and is backed by a 5-year warranty.
Specifications & Features
This 12V LED module is a compact and powerful solution for backlighting, signage, or silhouette lighting. Emitting bright 10000K white light, it offers a wide 160° beam angle for uniform illumination. Built with quality in mind, it’s CE and RoHS certified and backed by a 5-year warranty—perfect for demanding installations that require long-lasting performance and waterproof protection.
Specifications
- Voltage: 12V DC
- Power: 1.44W (White), 0.96W (Colours)
- Lumen Output: Not specified
- Colour Temperature: 10000K (White) – Understanding Colour Temperature
- Material: Sealed Resin / Plastic Housing
- IP Rating: IP67
- Dimensions: 41mm x 41mm x 6mm
- CRI: Not specified
